  Hearoid 2010 ® By TTC ® for Tomy ® | Previous | 1 | 2 | 3 | 4 | 5 | Next |

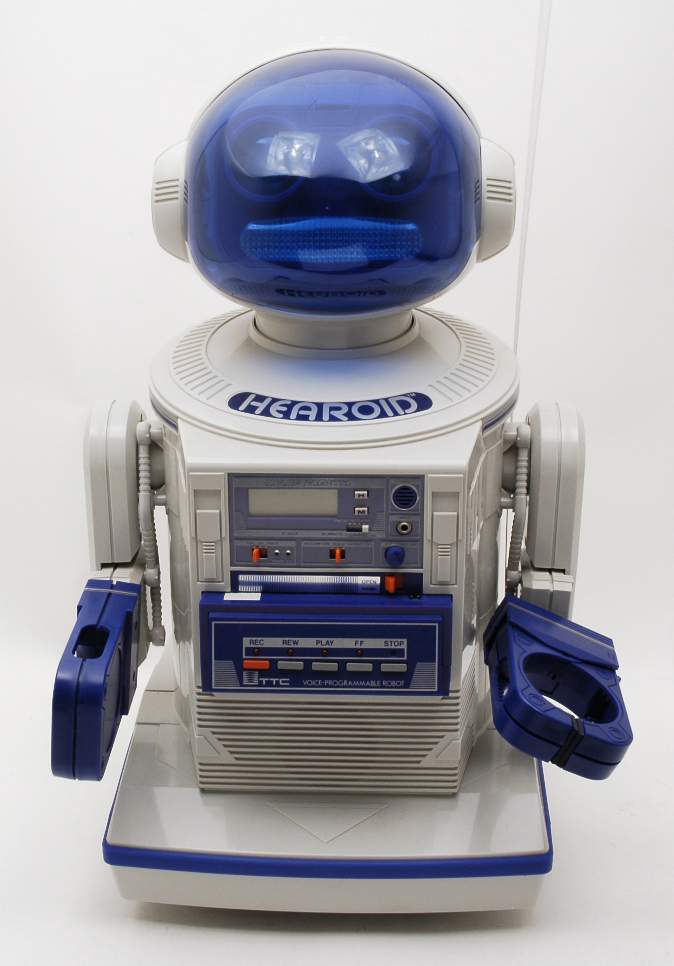

Hearoid 2010
Hearoid 2010 ® By TTC ®
Click to Enlarge
Hearoid 2010
Hearoid 2010 ® By TTC ®
Click to Enlarge
Hearoid 2010
Hearoid 2010 ® By TTC ®
Click to Enlarge
Hearoid 2010
Hearoid 2010 ® By TTC ®
Click to Enlarge
Hearoid 2010
Hearoid 2010 ® By TTC ®
Click to Enlarge

Hearoid 2010
Hearoid 2010 ® By TTC ®
Click to Enlarge
Hearoid 2010
Hearoid 2010 ® By TTC ®
Click to Enlarge
Hearoid 2010
Hearoid 2010 ® By TTC ®
Click to Enlarge
Hearoid 2010
Hearoid 2010 ® By TTC ®
Click to Enlarge
Hearoid 2010
Hearoid 2010 ® By TTC ®
Click to Enlarge

Hearoid 2010
Hearoid 2010 ® By TTC ®
Click to Enlarge
Hearoid 2010
Hearoid 2010 ® By TTC ®
Click to Enlarge
Hearoid 2010
Hearoid 2010 ® By TTC ®
Click to Enlarge
Hearoid 2010
Hearoid 2010 ® By TTC ®
Click to Enlarge


Omnibot Hearoid
Click to Enlarge

Tomy Hearoid
Click to Enlarge

Hearoid Advertisement
Click to Enlarge
Hearoid 2010
Hearoid 2010 ® By TTC ®
Click to Enlarge
Hearoid 2010
Hearoid 2010 ® By TTC ®
Click to Enlarge

Hearoid 2010
Hearoid 2010 ® By TTC ®
Click to Enlarge
Hearoid 2010
Hearoid 2010 ® By TTC ®
Click to Enlarge
Hearoid 2010
Hearoid 2010 ® By TTC ®
Click to Enlarge
Hearoid 2010
Hearoid 2010 ® By TTC ®
Click to Enlarge
Hearoid 2010
Hearoid 2010 ® By TTC ®
Click to Enlarge

Hearoid ® Omnibot - TTC ® has created these robots for Tomy ® who throughout the years and in the 80's created a line of small personal robots. It is truely astounding what they, and other companies, were able to acomplish utilizing the resources at the time to manufacture and sell this product line. They did not have a onboard programmable computer, but the programming is done by recording the movement commands to a regular cassette tape which can be played back at certain times by using the built-in clock.

Robot Specifications :
1. Tape Cassette Recorder Type: 2 track monaural , Tape Selection: normal bias only , Tape Speed: +/- 3% , Wow & Flutter: within 0.3%
2. Alarm Clock display: LCD accuracy: +/- 2 sec/day power: 1.5v AA battery duration: typical 5000 hours
3. Recharger (U.L. listed) coax plug (negative middle) in: 120 VAC - out: 6 VDC, 400 ma
4. Main Battery Type: sealed lead acid , Output Rating: 6 V, 4.0 Ah , Physical Size: 2 1/4"L x 1 3/4"W x 4"H , Terminals / Connectors: lead wires with coaxial 'barrel-type' connector (negative center pole)
5. Microphone type: dynamic, 300 - 600
6. Operating R/C frequency: 49.830 mhz

7. General Operating time: Battery Life: 4 hours continuous at 5.5 V (normal) , Battery Indicator: red light indicates when discharged to 5.77 volts , Operating Temperatures: 41 Degrees F~104 Degrees F (5 Degrees C~40 Degrees C)
8. External outlets: Output: 6vdc Speaker: 8 ohms R/C: output 5vdc, 800ma Timer: output 6vdc, 100ma Sensor: only for Tomy accessory
9. Bulbs for eye-lights 2.8v, 200ma use not more than 3v 250ma 10. Remote Control 4 * 1.5v (AA)

Accessories :
A. Controller - B. Detachable tray 2.2 lbs maximum weight allowance - C. Demonstration cassette tape - D. Battery charger - E. Home Base - F. Tuner



Source: Internet, My Collection, Private Hobbyist Collection, Updated 04-10-2013
