Mr. D. J. ® by Tomy ® - Disassembly & Assembly Procedure


Mr. D. J. by Tomy - Click to Enlarge
1. Make sure the robot is shut off.
Pry both sidepieces off the robot.

Mr. D. J. by Tomy - Click to Enlarge

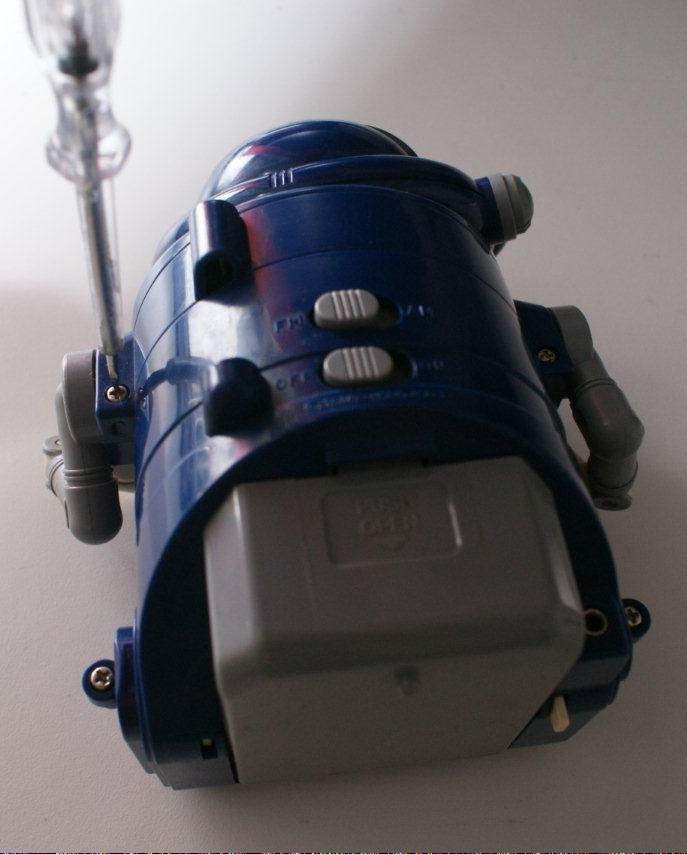

2. Unscrew all four screws on the robot.

Mr. D. J. by Tomy - Click to Enlarge

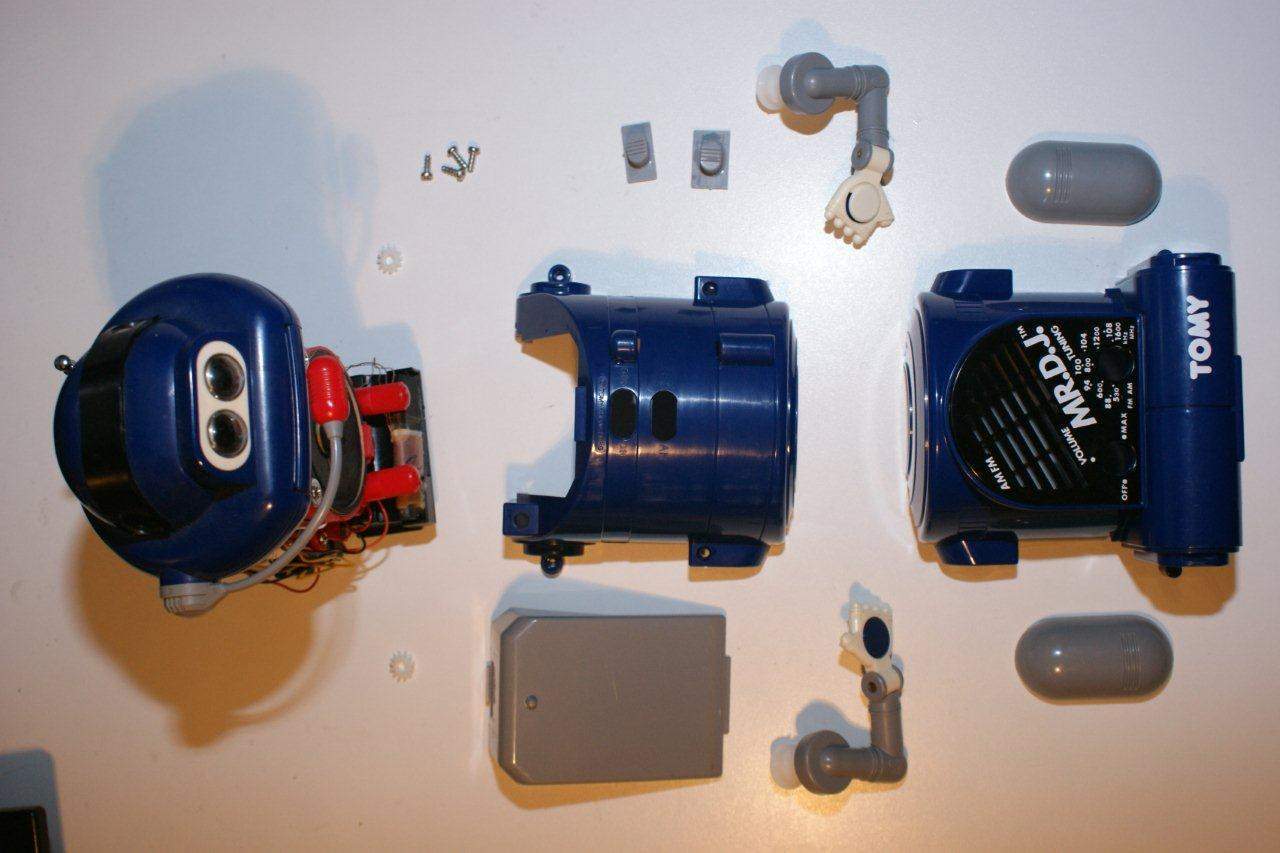

3. Remove the front and rear covers.


Mr. D. J. by Tomy - Click to Enlarge
4. Mr. D.J. from different views.

Mr. D. J. by Tomy - Click to Enlarge

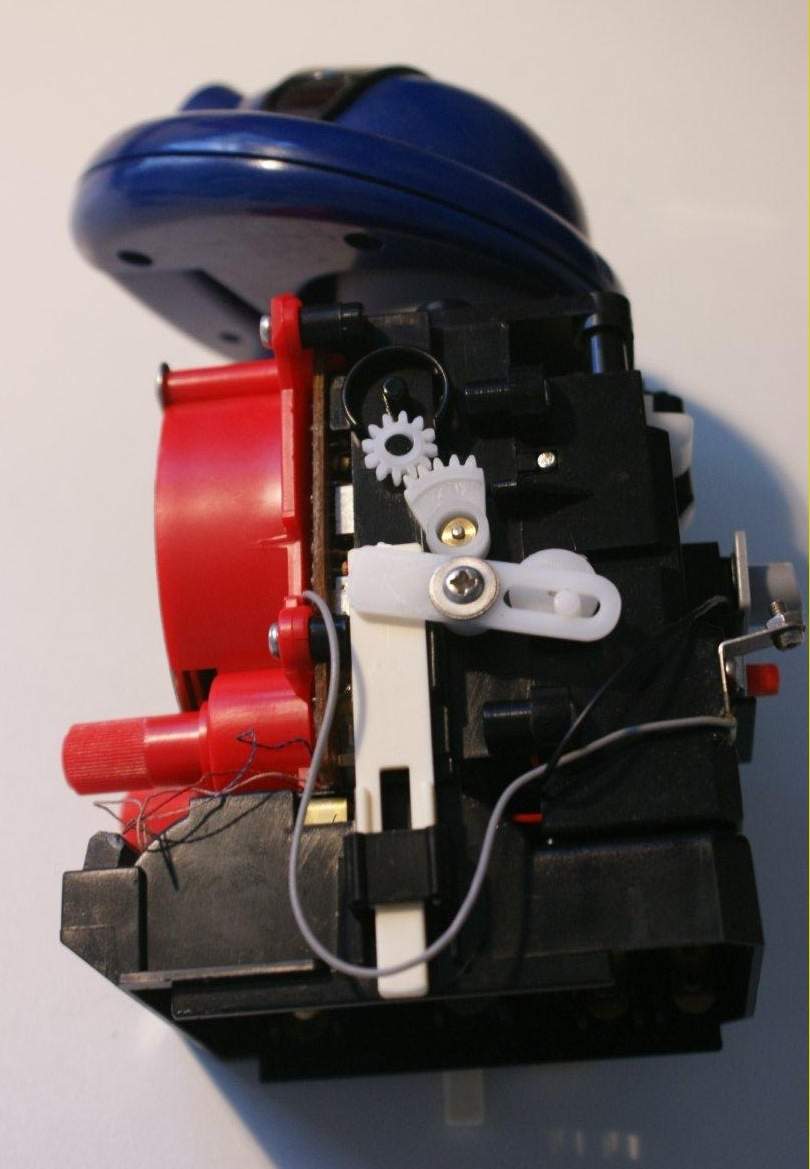

5. Mr. D.J. from different views.

Mr. D. J. by Tomy - Click to Enlarge
6. Mr. D.J. from different views.

Mr. D. J. by Tomy - Click to Enlarge

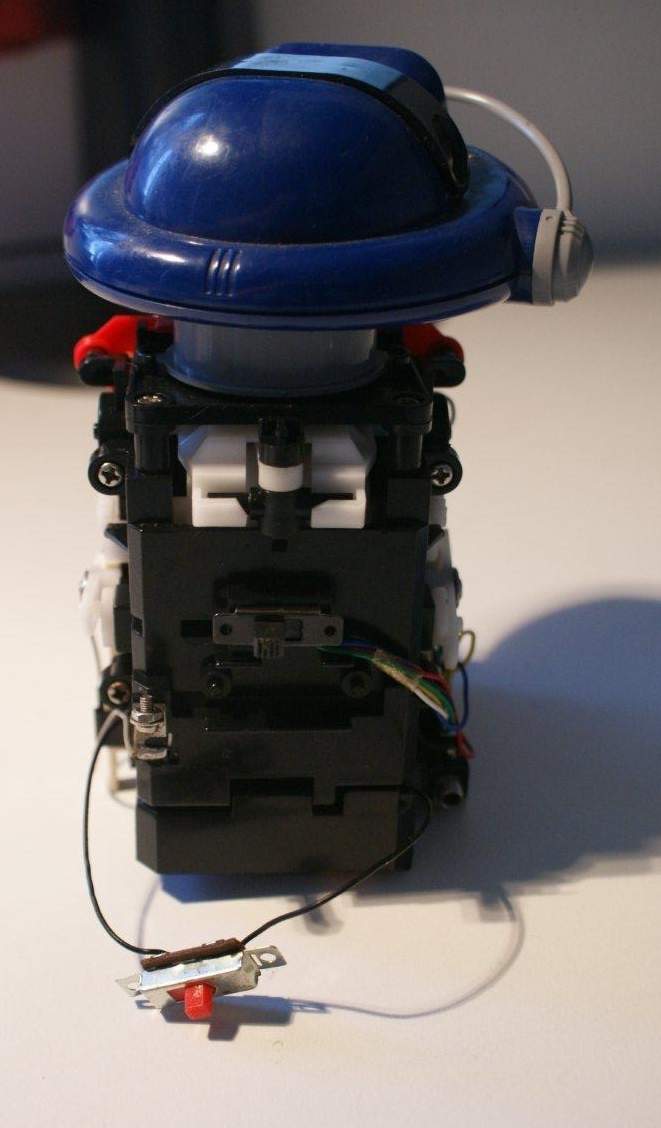

7. Mr. D.J. from different views.


Mr. D. J. by Tomy - Click to Enlarge
8. Mr. D.J. from different views.



Tomy D.J. ® AM/FM Radio Schematic

This process Addresses the Mechanical Disassembly of the Mr. D. J. Robot. Accompanying this Procedure is pictures that you can expand to see more details as needed. Static discharge can damage electronics and it is recommended that you have and use a Static grounding wrist strap.

There is no warranty expressed or implied with this procedure. By using any information from this web site, you agree not to hold responsible this site, me, nor any of its representatives, for any injuries and/or damages, both physical and/or psychological, that may arise from the use and/or misuse of anything derived from this site. The user further agrees that such information/pictures does not constitute any guarantee of accuracy, safety or reliability, and that cannot be held responsible for any way. The user agrees to proceed at their own risk.


Source: My Collection - Updated 02-31-2009
