  MANOI PF01 Robot by Kyosho | Previous | 1 | 2 | Next |

TheOldRobots.Com
Manoi
MANOI PF01 Robot
Manoi
TheOldRobots.Com
Manoi
Manoi
Manoi
Manoi
Manoi

Manoi
Manoi
MANOI PF01 Robot
Manoi
MANOI PF01 Robot
Manoi
TheOldRobots.Com
Manoi
Manoi
Manoi

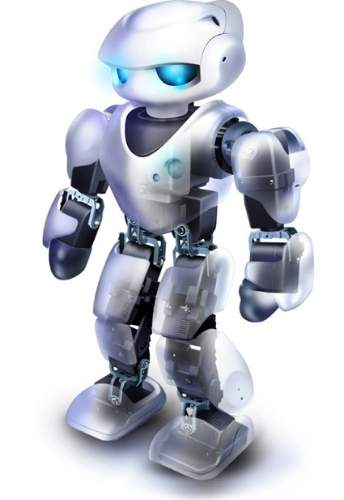

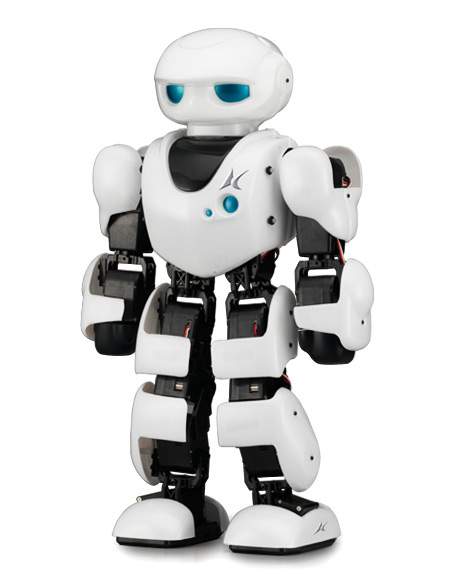

MANOI PF01 Robot - Meet the new and improved Manoi PF01 Humanoid Robot! Kyosho has done it again, bringing you another stylish and powerful Manoi humanoid robot! The Manoi PF01 has everything that made the AT01 great. The Manoi PF01 Robot's polycarbonate shell pieces cover the servos and skeleton almost completely, giving this humanoid a sleek, streamlined appearance. The inside of the head of the Manoi PF01 provides plenty of space for mounting additional sensors, even small cameras! Rubber pieces integrated into the front and back of the head protect the PF01 in case it takes a fall.

Hardware Specification:
Dimension 340 x 180 [mm]
Weight About 1.6 [kg] (including a battery)
Degrees of Freedom 17 (Neck x1, Arm x3, Leg x5)
Communication with PC RS232C (115kbps)

Robot Specifications:
RC Servo Module: 17 * KRS-4024S HV ICS Digital Servos 10kg-cm, 0.14sec/60deg.

Control board: 2 * RCB-3J Control Board with 24 PWM input/output and 3 analog input ports
Control Software: 1 * OEM and Several aftermarket add-ons
Serial Cable: 1 * USB to Serial Cable
Battery: 3 * Lithium Polymer batteries
Charger: 1 * AC100V charger

Dimension: 340 x 180 [mm]
Weight: About 1.2 [kg] (including a battery)
Degrees of Freedom: 17 (Neck x1, Arm x3, Leg x5)
Communication with PC: RS232C (115kbps)
External I/F: Serial communication (RS232C)
Software: The MANOI comes with "Heart-to-Heart 3" software, and can be uploaded to the robot via serial connection.


MANOI PF01 Robot
Manoi
Manoi
Manoi
MANOI PF01 Robot
Manoi
TheOldRobots.Com
Manoi
Manoi
Manoi
MANOI PF01 Robot
Manoi

Source: Internet & Research - Updated 9-14-2009
