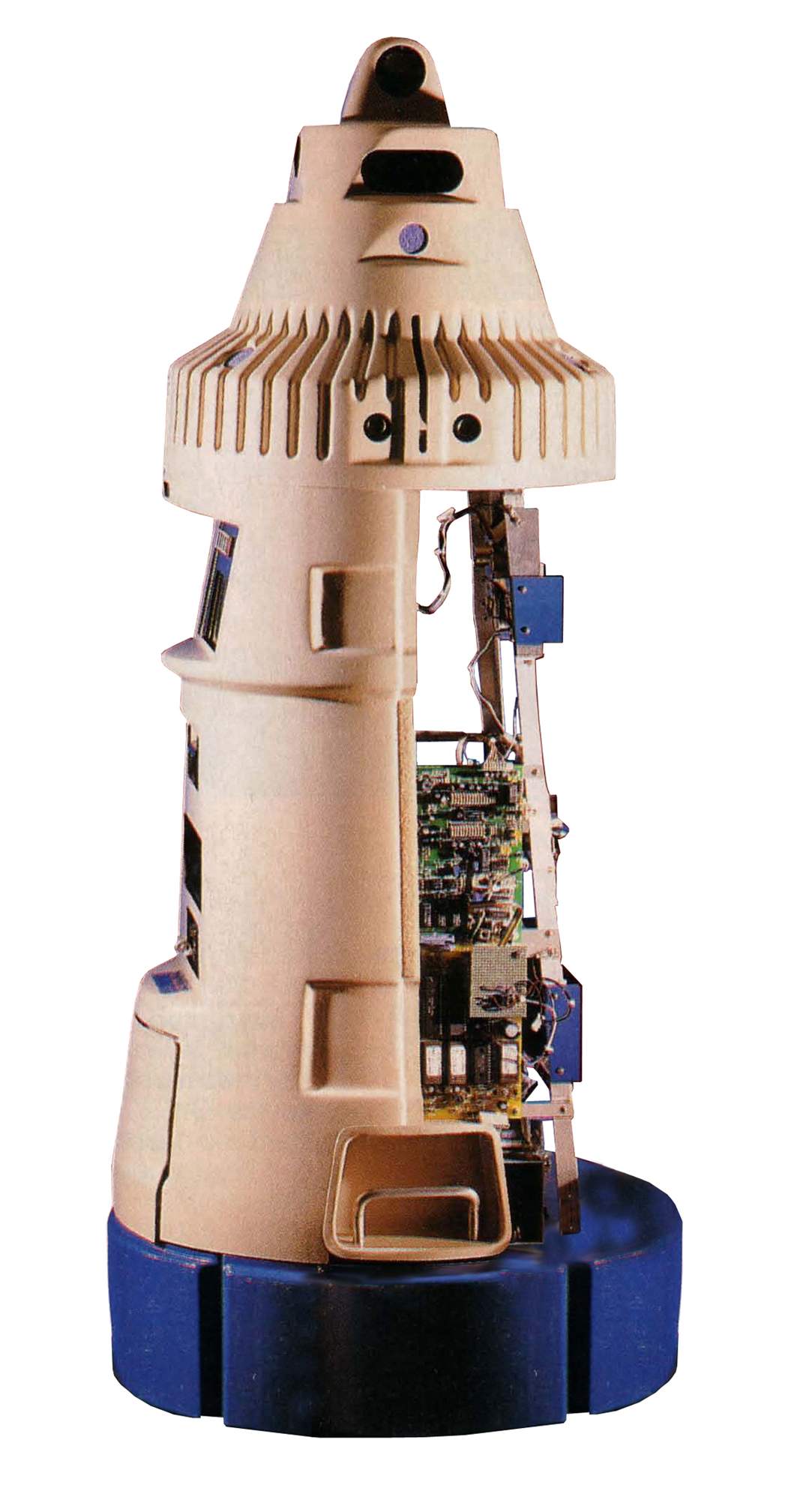

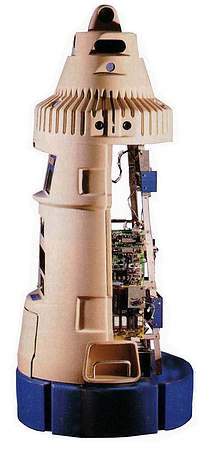

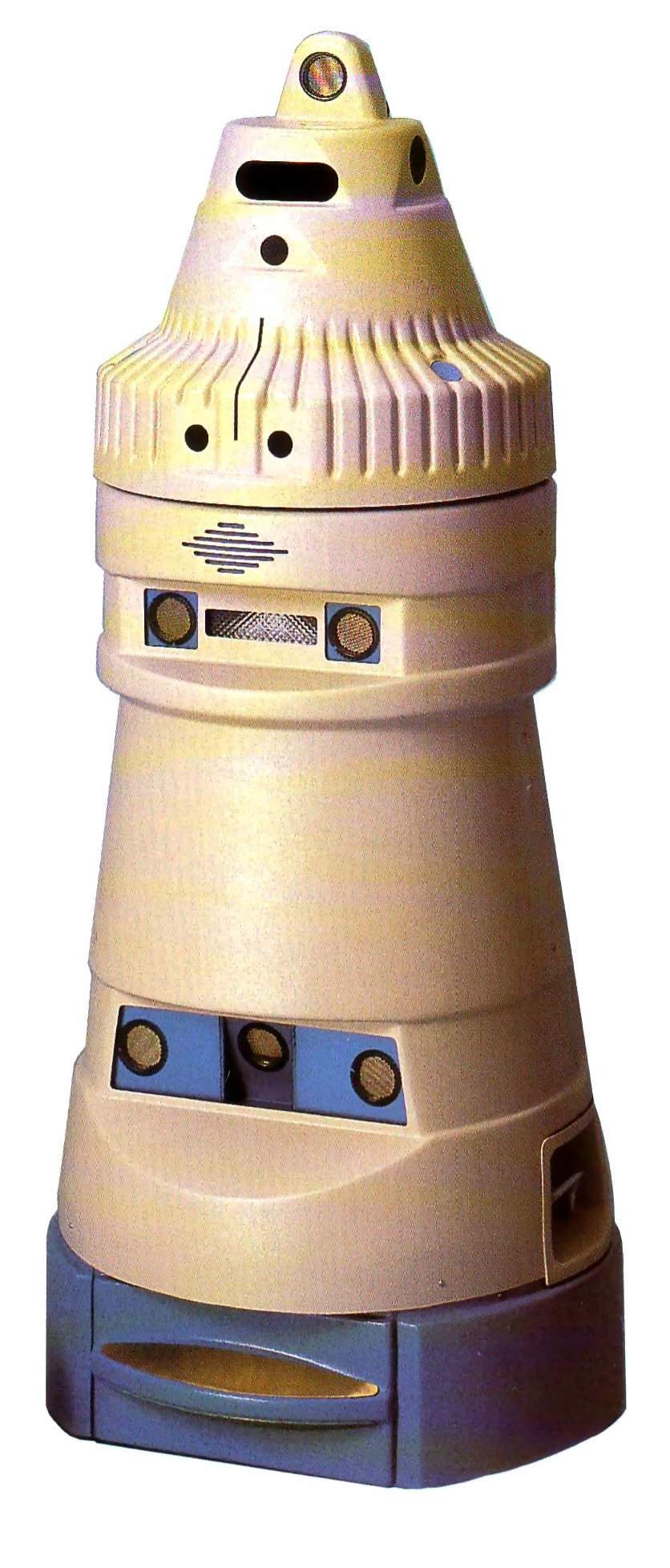

Gemini Robot
Gemini ® by Arctec Systems ®
"The Autonomous Robot"
Click to Enlarge
Gemini Robot
Gemini ® by Arctec Systems ®
"The Autonomous Robot"
Click to Enlarge
Gemini Robot
Gemini ® by Arctec Systems ®
"The Autonomous Robot"
Click to Enlarge
Gemini Robot<
Gemini ® by Arctec Systems ®
"The Autonomous Robot"
Click to Enlarge
Gemini Robot
Gemini ® by Arctec Systems ®
"The Autonomous Robot"
Click to Enlarge

Gemini Robot
Gemini ® by Arctec Systems ®
"The Autonomous Robot"
Click to Enlarge
Gemini Robot
Gemini ® by Arctec Systems ®
"The Autonomous Robot"
Click to Enlarge
Gemini Robot
Gemini ® by Arctec Systems ®
"The Autonomous Robot"
Click to Enlarge


GEMINI TM The Autonomous Robot by Arctec Systems -

The Gemini is the self-navigating, self-charging, multiple-processor-based, life size robot with built-in artificial intelligence operating system, speech recognition, speech synthesis, environmental sensors and a computer controlled propulsion system.

The Gemini represented a breakthrough in 80's robotics, and has two types of sensor systems, nine Polaroid ultrasonic sonars and contact bumpers monitored by the propulsion computer. Intelligence was provided by its three on-board computers. One was for the artificial intelligence, one for voice/speech recognition and speech synthesis/text-to-speech, and the other for propulsion control. All computers were CMOS chip devices. Speech recognition and text-to-speech are products which enabled the Gemini to respond to voice commands. Coded infrared room beacons supplemented navigation. The robot is able to see the infrared beacons and interpret the code to determine its location. A scheduler interface was provided to schedule tasks for the robot. This was accessed with the internal keyboard and onboard display provided with the robot. The emini supported a radio-frequency link to a desktop unit.


GEMINI TM The Autonomous Robot by Arctec Systems
    Specifications Hardware

    Autonomous operation, self navigating, self charging
    48 inches high, 20 inches in diameter, 70 pounds
    9 ultrasonic collision avoidance and navigation sensors
    Three on-board computers (all high-speed CMOS Rockwell 65C02's)
    Main computer-64K ROM, 56K RAM
    Voice Input/Output and Sound computer-24K ROM, 16K RAM
    Propulsion Control computer-2K ROM, 2K RAM

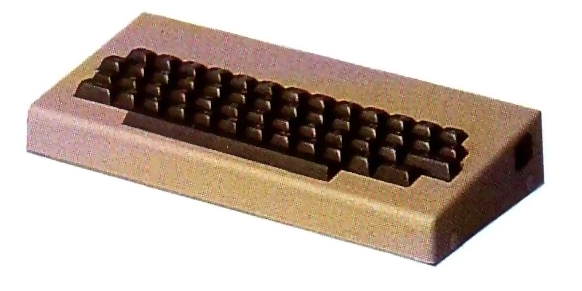

    Full size, cordless, detachable keyboard with 6303 CMOS microcomputer (2K ROM) carried by robot
    Remote Communication computer-8K ROM, 32K RAM (optional)
    40-character by 8-line low-power alphanumeric liquid crystal display
    Light, sound, temperature and battery voltage sensors; barometric pressure and smoke sensors optional
    16-channel, 8-bit CMOS analog to digital converter
    Real time clock, RS232 port, Centronics printer port, hardware random number generator
    Four peripheral expansion ports using bus structure similar to Apple
    Convenient joystick controller
    Low power WAFER (endless tape) or 3 1/2-inch floppy DISK drive (both optional)

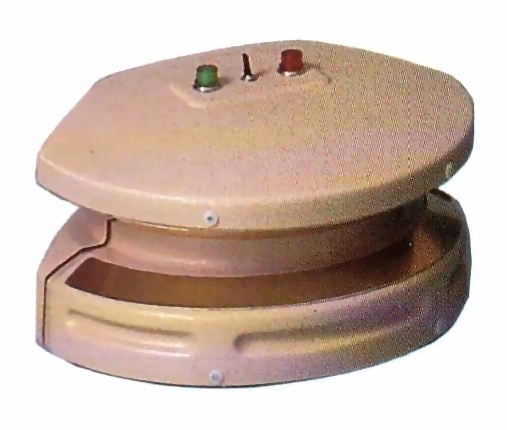

    Charger- self charging type, anti-static mat
    Software

    100K integrated artificial intelligence operating system
    Automatic self-checking and diagnostics on power-up
    Extensive built-in DEMO program-pushbutton operation
    Multiple user, 256-word voice recognition system with adaptive learning ability
    Integrated VOICE COMMAND LANGUAGE (VOCOL)-optional
    Advanced, easy to use task SCHEDULER program
    User-configurable security guard program (optional)
    Third generation unlimited vocabulary speech synthesizer with text-to-speech software
    Full floating Doint BASIC with robot control commands (optional)

    Documentation

    Users' Manual including a section on the extended BASIC language.
    Technical Reference Manual contains schematics and listings
    Young User's Manual includes many experiments and games

    Look to the robotU.com : web site for a lot more information, video, schematics etc.. on Gemini.
