  OOM ® By TTC ® for Tomy ® | Previous | 1 | 2 | 3 | 4 | Next |

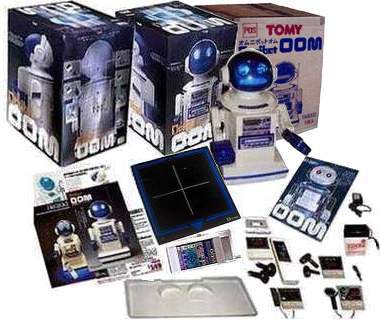

OOM Robot bt TTC
OOM ®By Tomy ®
OOM Robot bt TTC
Front
OOM Robot bt TTC
Back
OOM Robot bt TTC
Side
OOM Robot bt TTC
Side

OOM Robot bt TTC
Tuner


Trey

OOM Robot bt TTC
Charger


Battery


OOM Robot bt TTC
OOM ® Manual
OOM Robot bt TTC
OOM ® Base Target
OOM Robot bt TTC
OOM ® Controller
OOM Robot bt TTC
Demo Tape

OOM Robot bt TTC
OOM ® Box
OOM Robot bt TTC
OOM ® Box
OOM Robot bt TTC
OOM ® Box
OOM Robot bt TTC
OOM ® Box

ADVERTISEMENT POSTERS DOWNLOAD MANUAL COMPUTER PROG. REPAIRS VIDEO COMPARE ROBOTS MISCELLANEOUS

OOM ® Omnibot - TTC ® has created these robots for Tomy ® who throughout the years and in the 80's created a line of small personal robots. It is truely astounding what they, and other companies, were able to acomplish utilizing the resources at the time to manufacture and sell this product line. They did not have a onboard programmable computer, but the programming is done by recording the movement commands to a regular cassette tape which can be played back at certain times by using the built-in clock.

Robot Specifications:
1. Tape Cassette Recorder Type: 2 track monaural , Tape Selection: normal bias only , Tape Speed: +/- 3% , Wow & Flutter: within 0.3%
2. Alarm Clock display: LCD accuracy: +/- 2 sec/day power: 1.5v AA battery duration: typical 5000 hours
3. Recharger (U.L. listed) coax plug (negative middle) in: 120 VAC - out: 6 VDC, 400 ma
4. Main Battery Type: sealed lead acid , Output Rating: 6 V, 4.0 Ah , Physical Size: 2 1/4"L x 1 3/4"W x 4"H , Terminals / Connectors: lead wires with coaxial 'barrel-type' connector (negative center pole)
5. General Operating time: Battery Life: 4 hours continuous at 5.5 V (normal) , Battery Indicator: red light indicates when discharged to 5.77 volts , Operating Temperatures: 41 Degrees F~104 Degrees F (5 Degrees C~40 Degrees C)
6. Microphone type: dynamic, 300 - 600
7. Operating R/C frequency: 49.830 mhz
8. External outlets: Output: 6vdc Speaker: 8 ohms R/C: output 5vdc, 800ma Timer: output 6vdc, 100ma Sensor: only for Tomy accessory
9. Bulbs for eye-lights 2.8v, 200ma use not more than 3v 250ma 10. Remote Control 4 * 1.5v (AA)

Accessories
Controller
Detachable tray 2.2 lbs maximum weight allowance
Demonstration cassette tape
Battery charger
Home Base
Tuner



Source: My Collection, Private Hobbyist Collection, German Collection - Updated 02-14-2009
